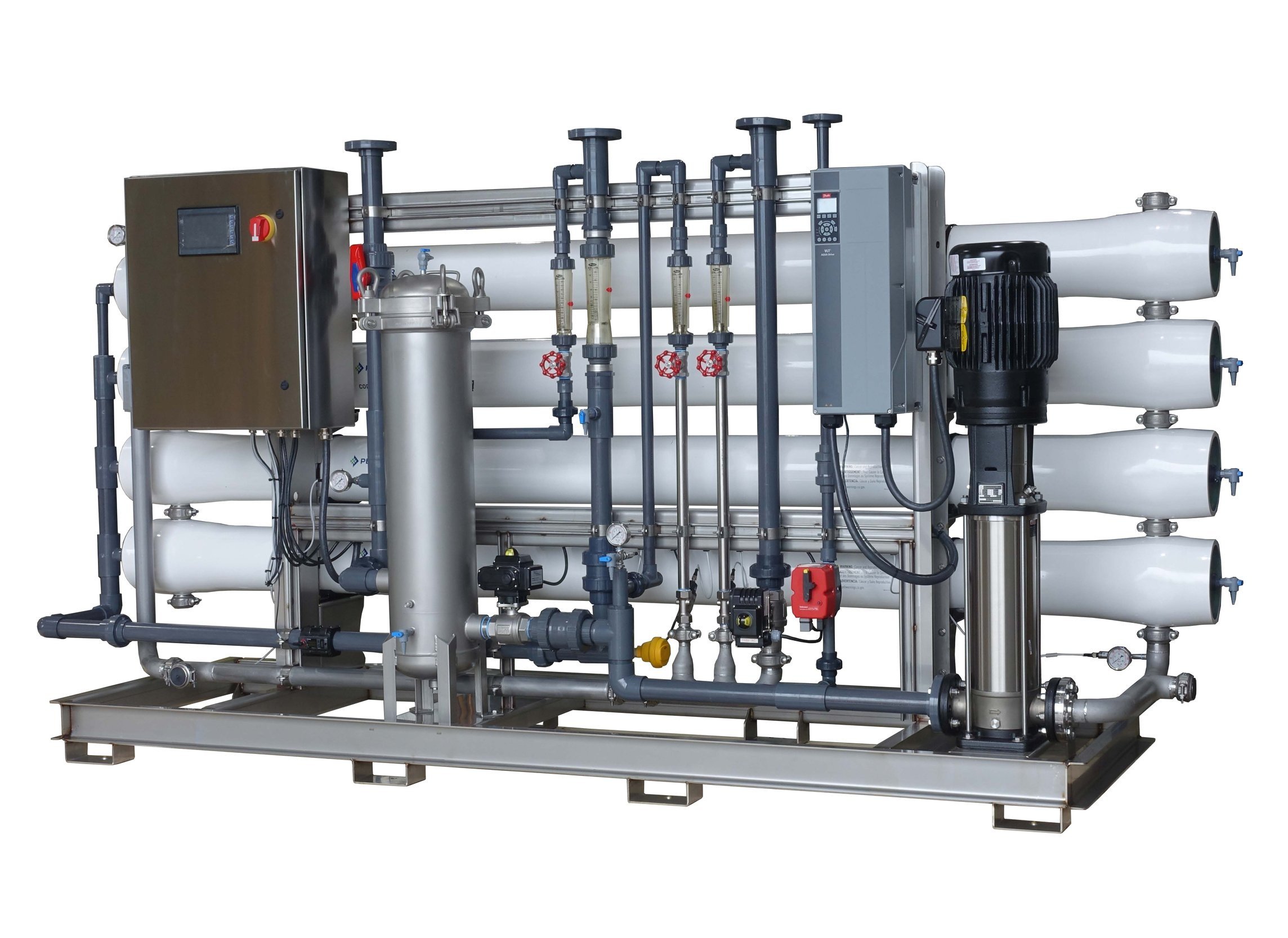

GRO-8H HP Pro-Series Reverse Osmosis System

The GRO-8H Pro-Series Industrial Reverse Osmosis System is engineered to economically produce high purity water by removal of dissolved minerals, bacteria, particles, and organic impurities.

Each 8H Pro-Series System is constructed using high quality components and materials for reliable operation and exceptional performance. System output range from 25-300 GPM (36,000-432,000 GPD).

Our specialty is skid mounted, pre-piped, and pre-wired equipment allowing for quick installation and start-up time.

  • • 8” x 40” High rejection membrane

    elements

    • 304 Series Stainless Steel

    Cartridge Filter Housing

    • Stainless steel electrical enclosure

    • Horner PLC w/Smart-rail remote I/O

    • Variable Frequency Drive pump control

    • Product water conductivity transmitter

    • Product Reject flow transmitters

    • System Pressure Transmitters

    • 316SS Pressure Gauges

  • • Pump: 304/316SS Grundfos multi-stage

    • Motor: 208-600 VAC, 3-phase, 60 Hz.

  • • Skid Frame: Stainless Steel

    • Membrane Elements: 8" HRLE

    • Membrane Housings: FRP (300 PSI )

    • Low pressure piping: Sch 80 PVC

    • High pressure piping: Sch 10 304SS

  • • Operating Pressure: 120-300 psig

    • Feed Water Recovery: 75–85%

    • Total Salt Rejection: 98–99%

    • Operating Temperature: 45–85° F

    • Design Temperature: 50° F

    • Minimum Inlet Pressure: 30 psi

    • Control Circuit: 120 VAC, 1-phase,

    60 Hz.

  • • Humidification

    • Ice-making

    • Bottled Water

    • Potable Water

    • Evaporative cooling

    • Horticulture

    • Livestock

    • Dairies

    • Process make-up water
